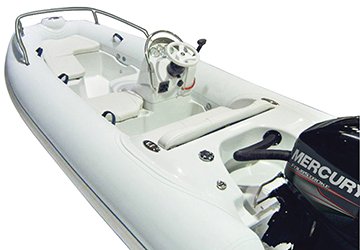

M-Series
The decked-out inflatable. Bow rails, coolers, integral fuel tank, the total package, right down to the Mercury FourStroke engine.
- Fabric Pennel
- Color White
- Overall length 20' 2" / 620 cm
- Load capacity 4070 lbs
- Maximum horsepower 150
Due to our constant efforts to offer the finest products available, we reserve the right to change specifications without notice. See your Mercury Authorized Dealer for details.
5-Year PVC Warranty
Mercury Inflatable PVC boats offer one of the best guarantees in the market including a 5-year limited warranty on the Haku fabric and air-holding thermowelded seams giving you assurance of our commitment to quality.
The Whole Package
Perfect for a day out with the family or getting to shore for a dinner on the sand. Built to impress from bow to stern.
Dressed to Impress
A list of features and add-on options like none its class. Get where you’re going. Look good doing it.
Trick It Out
A boatload of standard features makes this inflatable anything but standard. Integral fuel tank. Premium throttle and shift cables. Non-slip deck. Stainless steel bow rail. Enough bells and whistles to make any other boater sea-green with envy.
10-Year HP Warranty
Mercury Inflatable HP boats offer the best guarantee in the market including a 10-year limited warranty on the Achilles fabric and air-holding seams giving you assurance of our commitment to quality.
Specifications
M-Series
-
Print Compare With Other ProductsFabric - Pennel
Color - White
Overall length - 20' 2" / 620 cm
Overall beam - 8' 2" / 250 cm
Inside length - 8' / 244 cm
Tube diameter - 21" / 533 mm
Load capacity - 4070 lbs
Maximum engine weight - 602 lbs
Maximum horsepower - 150
Shaft length - 20" / 508 mm
Passenger capacity (Pennel) - 17
Number of air chambers - 5
Weight (Pennel) - 1200 lbs
Fabric thickness (Pennel) - 0.03" / 0.83 mm
Tube pressure (psi / bar) - 3.6 / 1.63
Seat - Yes
Bow locker - Yes
-
Print Compare With Other ProductsFabric - Pennel
Color - White
Overall length - 18' 4" / 558 cm
Overall beam - 7' 10" / 239 cm
Inside length - 7' 8" / 234 cm
Tube diameter - 20" / 508 mm
Load capacity - 2945 lbs / 1336 kg
Maximum engine weight - 462 lbs / 210 kg
Maximum horsepower - 115
Shaft length - 20" / 508 mm
Passenger capacity (HP) - 15
Number of air chambers - 5
Weight (Pennel) - 925 lbs / 420 kg
Fabric thickness (Pennel) - 0.03" / 0.83 mm
Tube pressure (psi / bar) - 3.6 / 1.63
Seat - Yes
Bow locker - Yes
-
Print Compare With Other ProductsFabric - Achilles HP
Color - White
Overall length - 13' / 396 cm
Overall beam - 6' 2" / 188 cm
Inside length - 6' / 183 cm
Tube diameter - 18" / 457 mm
Load capacity - 1276 lbs / 579 kg
Maximum engine weight - 287 lbs / 130 kg
Maximum horsepower - 50
Shaft length - 20" / 508 mm
Passenger capacity (HP) - 5
Number of air chambers - 3
Weight (HP) - 775 lbs / 352 kg
Fabric thickness (HP) - 0.03" / 0.84 mm
Tube pressure (psi / bar) - 3.6 / 1.63
Seat - Yes
Bow locker - Yes
-
Print Compare With Other ProductsFabric - Achilles HP
Color - White
Overall length - 11' 5" / 345 cm
Overall beam - 6' / 183 cm
Inside length - 4' 10" / 147 cm
Tube diameter - 17" / 432 mm
Load capacity - 776 lbs / 352 kg
Maximum engine weight - 243 lbs / 110 kg
Maximum horsepower - 40
Shaft length - 20" / 508 mm
Passenger capacity (HP) - 4
Number of air chambers - 3
Weight (HP) - 675 lbs / 306 kg
Fabric thickness (HP) - 0.03" / 0.84 mm
Tube pressure (psi / bar) - 3.6 / 1.63
Seat - Yes
Bow locker - Yes
Features & Benefits
Extra handles inside the tube provide a more secure grip as well as additional holding points.

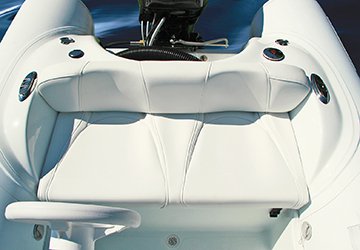

All Mercury Inflatable Boats feature a durable FRP seat to eliminate cracking, decay and slivers.
The oarlock system design has been redesigned so the oars can be fixed in a simple and secure way. (HP model shown)
The boats are equipped with contemporary lifting handles that also can be used as efficient rope holders. (HP model shown)
The fabric-wrapped transom protects against cracking and decay. All transoms are made waterproof by wrapping the transom with fabric, which ensure greater durability compared to traditional plywood transoms.
The inside drain valve provides you the luxury of draining from the inside, quickly and easily.
The double tear-drop rub strake helps to reduce splashing and provide your boat with better shock resistance.
Documents
You can order all available Mercury literature online or through any authorized Mercury dealer. Please have your outboard or sterndrive serial number before placing the order.
- Operation, Maintenance, and Warranty Manuals
- Parts Manual
- Service Manual
