Mercury® MerCruiser®
3.0L

One of the most popular sterndrives on the planet

The ideal propulsion choice for runabouts up to 19 feet

  • HP / kW 135 / 99.3
  • Maximum RPM (WOT) 4400 - 4800
  • Engine type Inline 4
  • Displacement (L) 3.0
  • Fuel delivery system Multi-point Electronic Fuel Injection (MPI)

The specifications displayed here may not be indicative of the entire engine family; click on the “See All Models and Specs” link to view the specs in detail.

See All Models and Specs

Easy to maintain.

Easy to maintain.

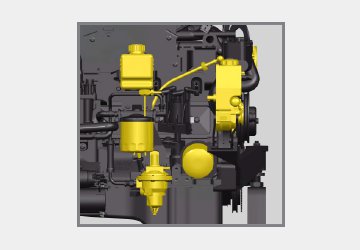

Color-coded service points help you locate and check fluids faster. Easy access is ensured by the front-mounted dipstick and oil fill, not to mention a spin-on oil filter. Mercury’s SmartCraft® system communicates all critical engine functions to the helm, putting you in complete control.

Durable.

Durable.

This high-displacement engine has a cast-iron block for rugged longevity. Mercury’s exclusive Engine Guardian system senses any potential problems and instantly takes action to prevent engine or drive damages from low oil pressure, low drive lubricant or overheating.

Fuel-Efficient.

Fuel-Efficient.

Sequential multi-port fuel injection precisely meters the air-to-fuel ratio, ensuring efficient operation any time the engine is running. The Emissions Control Technology (ECT) system works in tandem with the CPU to keep emissions in check. The result is better gas mileage and longer range.

Reliable.

Reliable.

The 3.0L is known for quick, easy starting – regardless of air temperature – as well as smooth idling and excellent throttle response. The high-output alternator, which produces 65 amps at maximum rpm and 38 amps at idle, provides battery charging on demand.

Specifications

Mercury® MerCruiser®: 3.0L

  • HP / kW
    • 135 / 99.3
    Maximum RPM (WOT)
    • 4400 - 4800
    Engine type
    • Inline 4
    Displacement (L)
    • 3.0
    Bore and stroke
    • 4.00 x 3.60" / 101 x 91 mm
    Compression ratio
    • 9.3:1
    Recommended fuel
    • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
    Engine control system
    • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
    Fuel delivery system
    • Multi-point Electronic Fuel Injection (MPI)
    Air induction
    • Single piece iron intake with 56mm throttle body
    Ignition
    • Crank fired high voltage switch with knock control
    Alternator amp / Watt
    • 65 amp / 917 watt
    Water drain system
    • EZ Water Drain
    Exhaust system
    • Electro-deposition paint coated iron manifold with dry joint elbow
    Cooling system
    • Raw water
    Accessory drive system
    • Serpentine belt
    Recommended oil
    • NMMA Certified FCW 25W-40 Synthetic Blend
    Engine guardian system
    • Knock control
    • Low drive lubricant
    • Low oil pressure
    • Low voltage
    • Low water pressure
    • Over-rev
    Dimensions (L x W x H)
    • 29 x 26 x 21" / 730 x 660 x 533 mm
    Weight (engine only)
    • 604 lbs / 417 kg
    Compatible drives
    • Alpha
    Print Compare With Other Products

Performance Tests

Read the reviews.

Mercury engineering reports and performance data. All available on-line for your review.

BHB - Boat House Bulletin Review
Test Date Engine Boat Prop Type
7/2013 3.0L MPI ECT Mercury® MerCruiser® Caravelle - 18 EBi Black Max® BHB -
5/2013 3.0L MPI ECT Mercury® MerCruiser® Caravelle - 18 EBi Black Max® BHB -
9/2011 3.0L MPI ECT Mercury® MerCruiser® Chaparral - 18 H2O Alpha 4® BHB -
9/2010 3.0L MPI ECT Mercury® MerCruiser® Larson - LX710 Black Max® BHB -
Test Date: 7/2013
Engine: 3.0L MPI ECT Mercury® MerCruiser®
Boat: Caravelle - 18 EBi
Prop: Black Max®
Type: BHB -
Test Date: 5/2013
Engine: 3.0L MPI ECT Mercury® MerCruiser®
Boat: Caravelle - 18 EBi
Prop: Black Max®
Type: BHB -
Test Date: 9/2011
Engine: 3.0L MPI ECT Mercury® MerCruiser®
Boat: Chaparral - 18 H2O
Prop: Alpha 4®
Type: BHB -
Test Date: 9/2010
Engine: 3.0L MPI ECT Mercury® MerCruiser®
Boat: Larson - LX710
Prop: Black Max®
Type: BHB -

See All Performance Tests

Documents

Buy the Books
Buy the Books

You can order all available Mercury literature online or through any authorized Mercury dealer. Please have your outboard or sterndrive serial number before placing the order.

  • Operation, Maintenance, and Warranty Manuals
  • Parts Manual
  • Service Manual

Purchase a Manual
