Built from the inside out for rugged performance. Our new 4.6L V8 powerhead features upgraded components support to a scaled-up power output and deliver reliability you can count on.
500R
THE NEW BENCHMARK

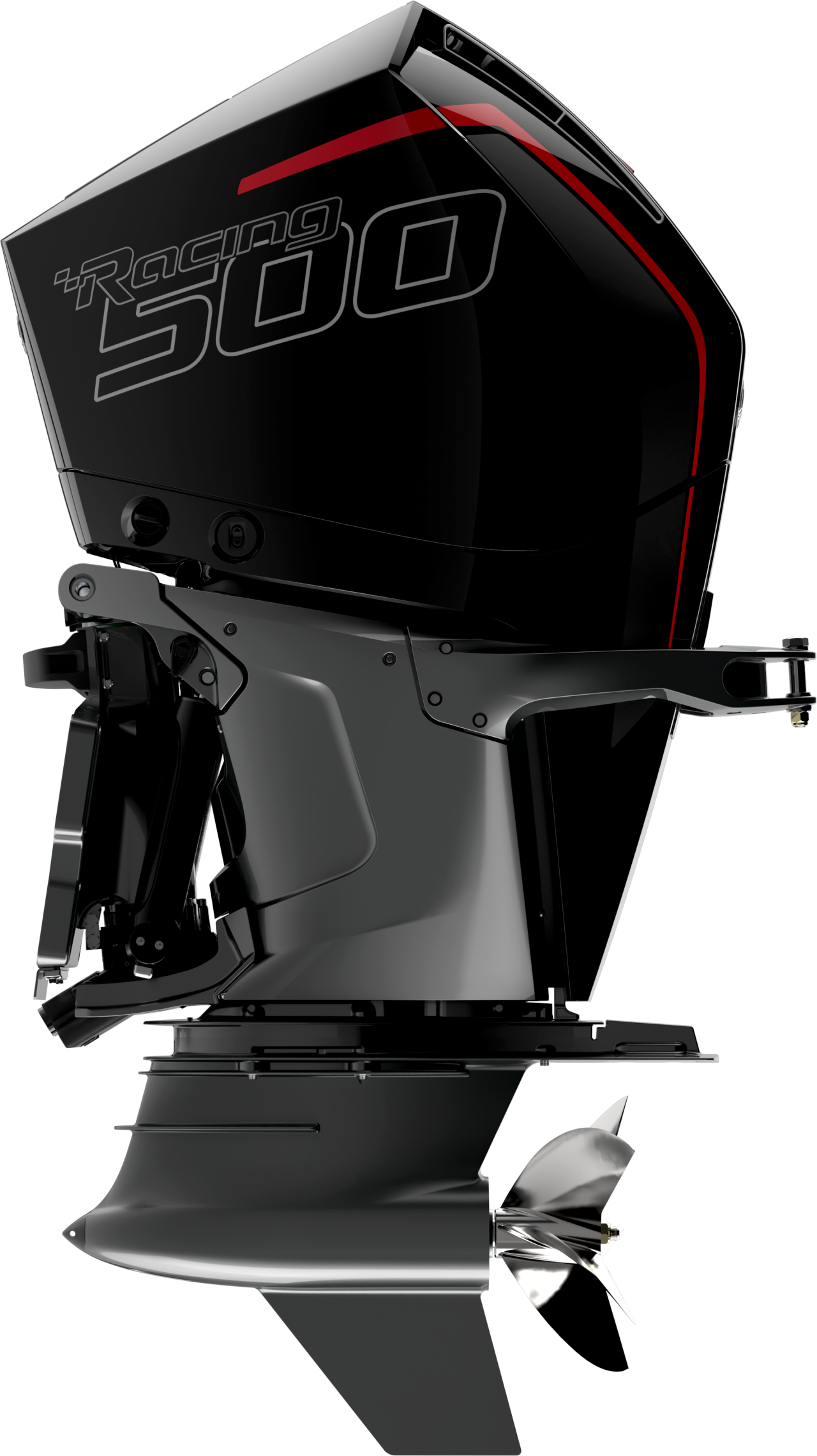

Experience elevated power and technology created exclusively for owners of the fastest luxury sport boats. Producing 500 supercharged horsepower, the Mercury Racing V8 500R introduces a host of new components in the powerhead, cooling system, midsection, gearcase and steering system, each engineered to harness the raw power produced by this engine and to meet the challenging demands of Wide Open performance boating.
POWERHEAD
500HP
PURE. MUSCLE.

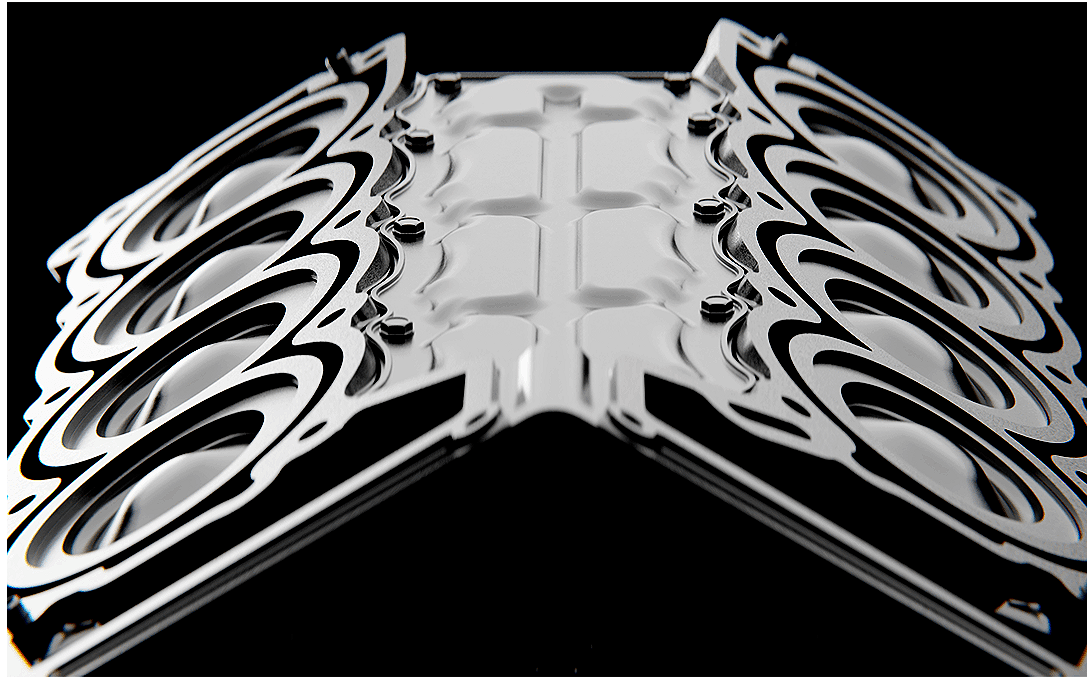

STOUT POWERHEAD

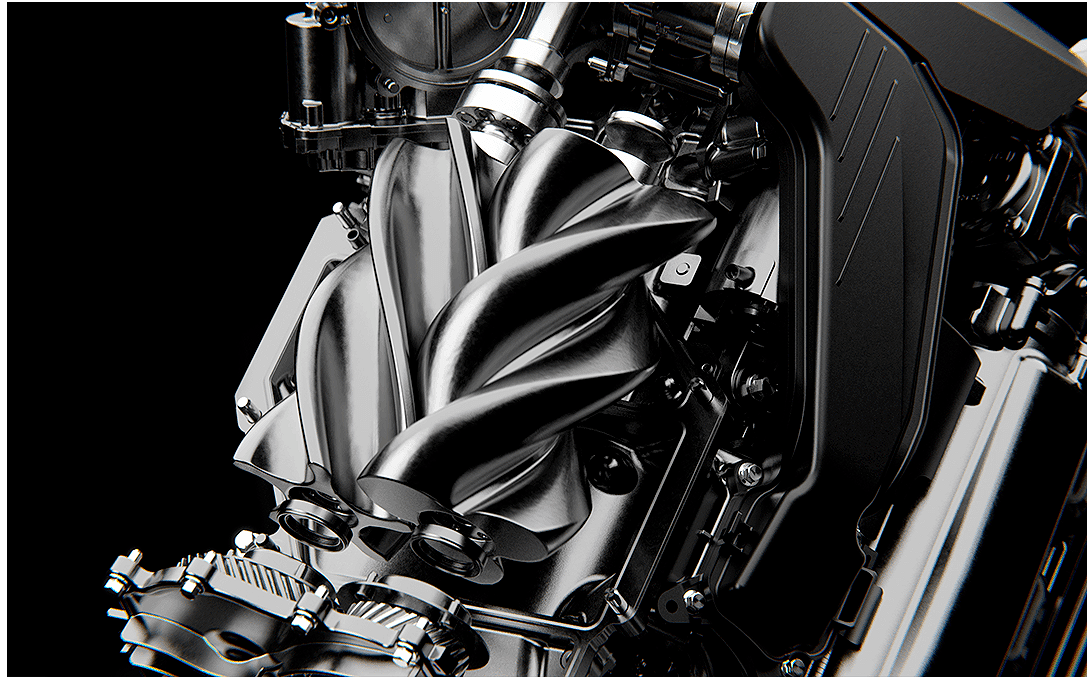

BIGGER BOOST
Our power prescription calls for a 26% increase in supercharger boost pressure. Air flow is optimized with a larger intake attenuator and a new 92mm throttle body.
HUMIDITY COMPENSATION TECHNOLOGY
More power in every environment. For the first time in any marine engine, a new sensor measures the humidity level of the intake airflow to maintain the most aggressive calibration and optimize performance under virtually all conditions.
MIDSECTION
STIFFER.
STRONGER.

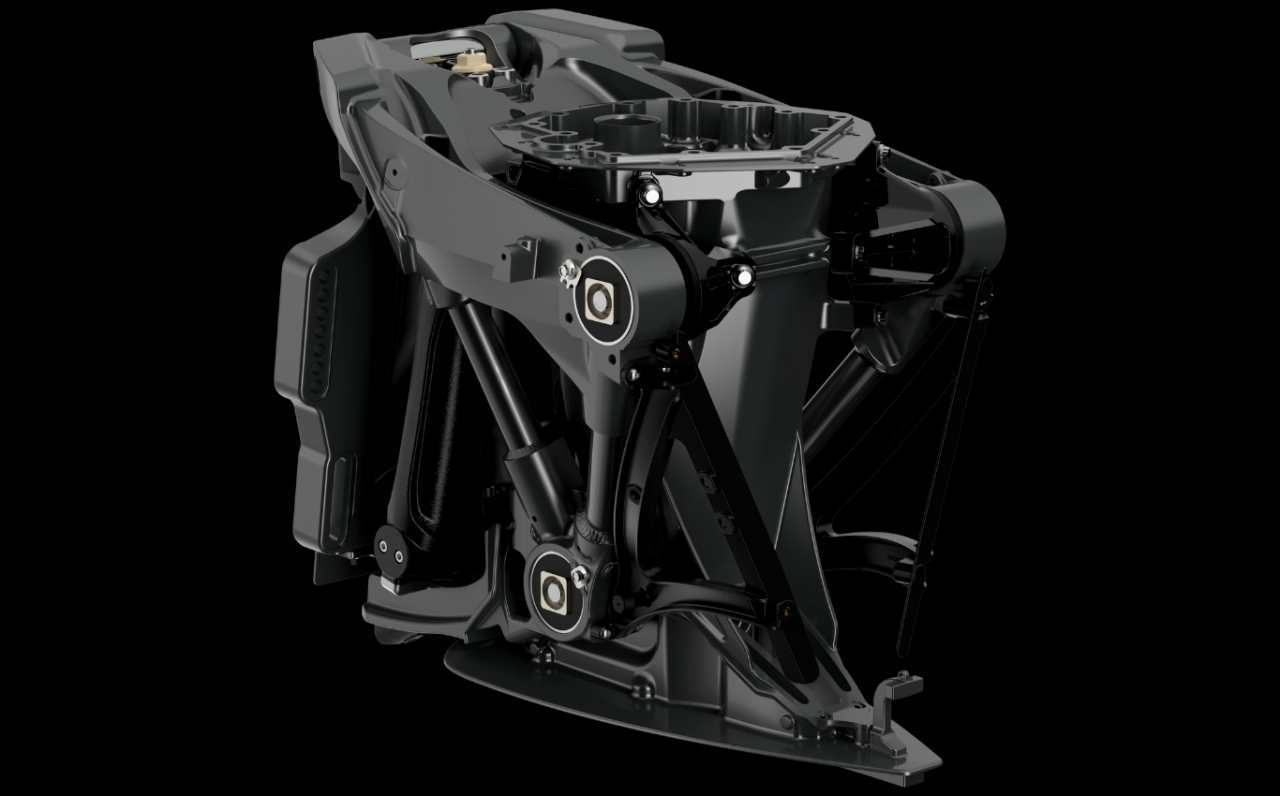

ADVANCED RACING CORE (ARC) MIDSECTION
The new Advanced Racing Core (ARC) midsection is engineered to upgrade durability and performance.

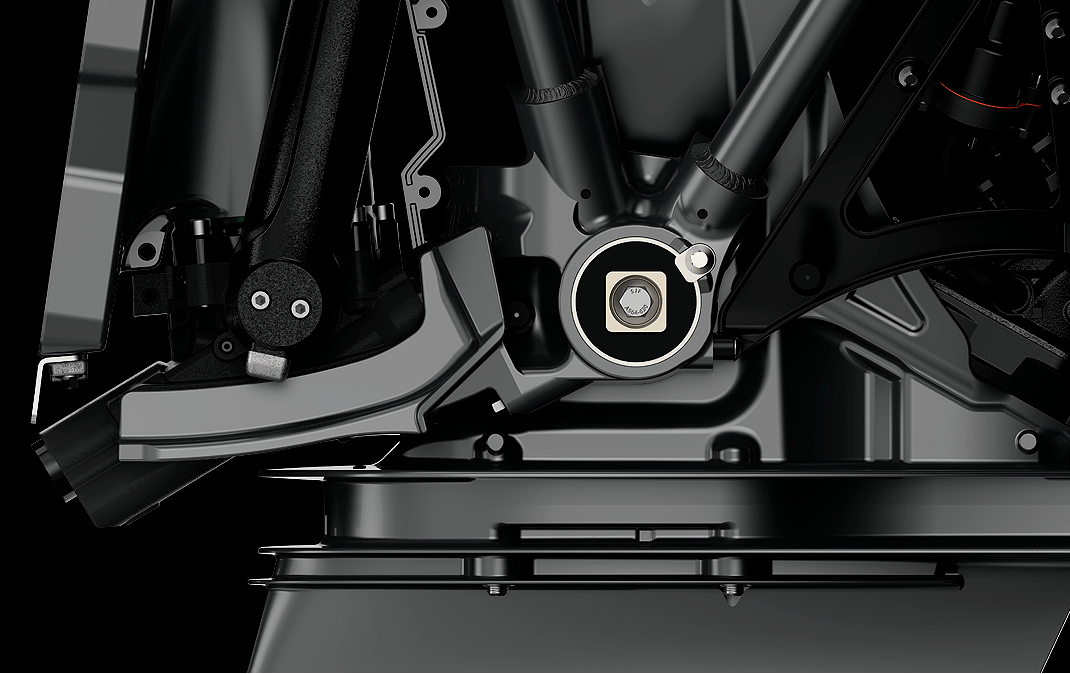

CORE STRENGTH
Mercury Racing has engineered the Advanced Racing Core (ARC) midsection to compliment the extreme thrust and high-speed capability of the 500R outboard. This is the strongest, stiffest and most-durable midsection ever created by Mercury Racing, and it is exclusive to the 500R outboard.

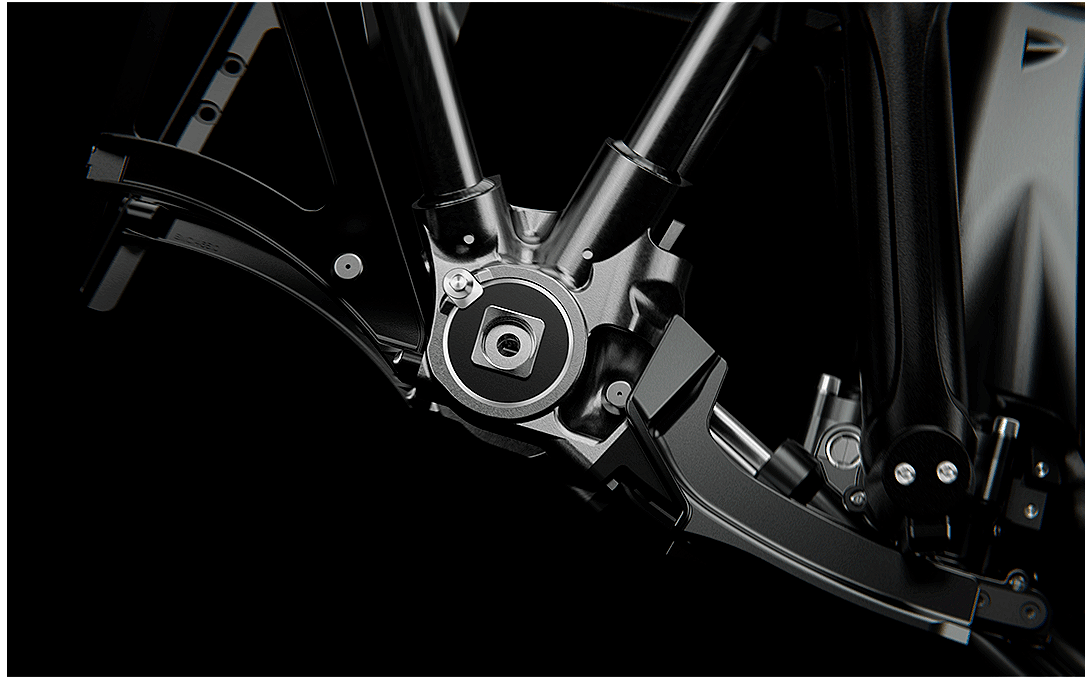

TRIMMED TO PERFECTION
Precise drive trim control is critical to realizing the high-speed potential of any performance boat. Mercury Racing leverages decades of experience in the heat of competition to engineer an upgraded trim and steering system for the 500R outboard that delivers unmatched precision.
GEARCASE
SPEED.
RATED.

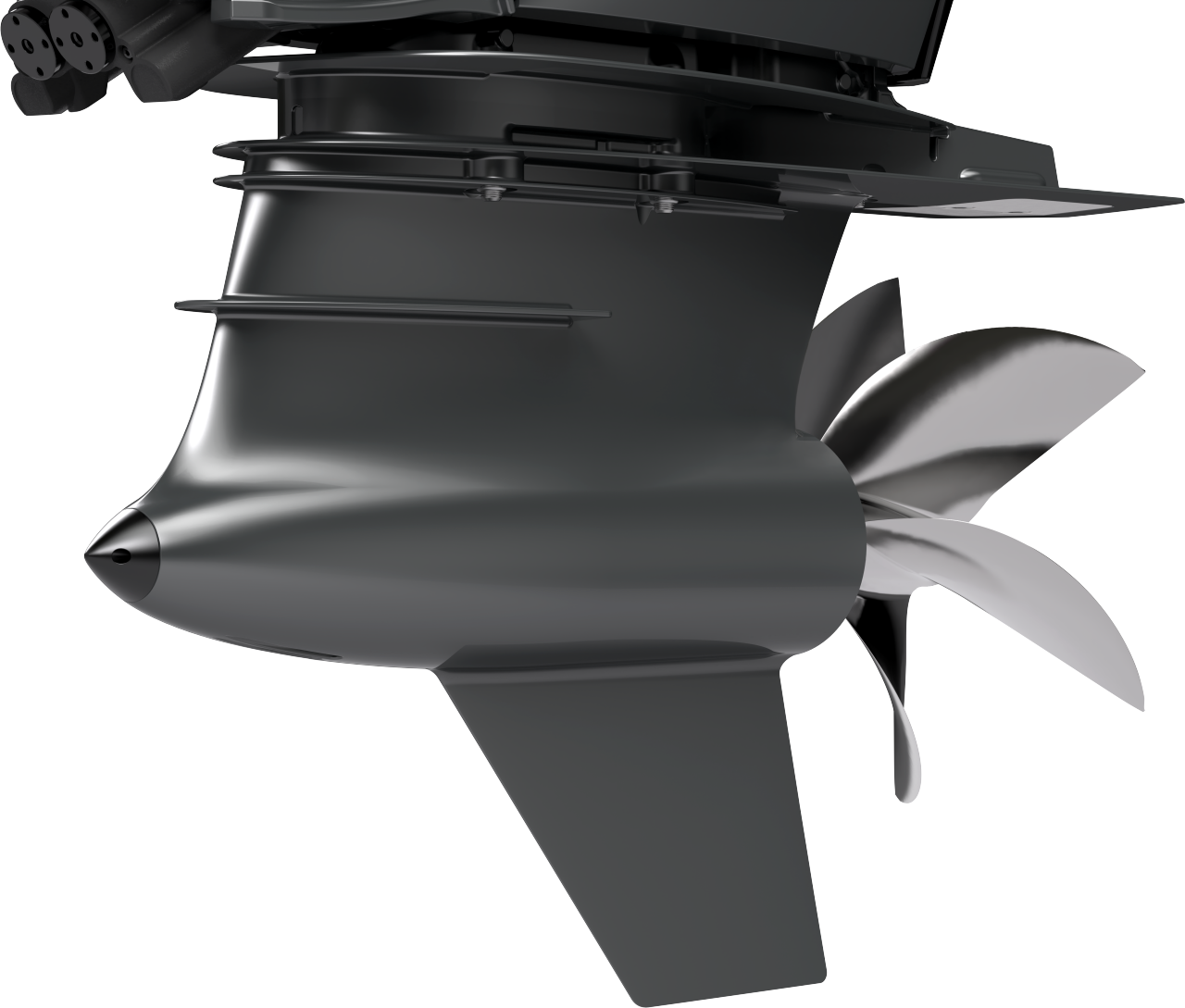

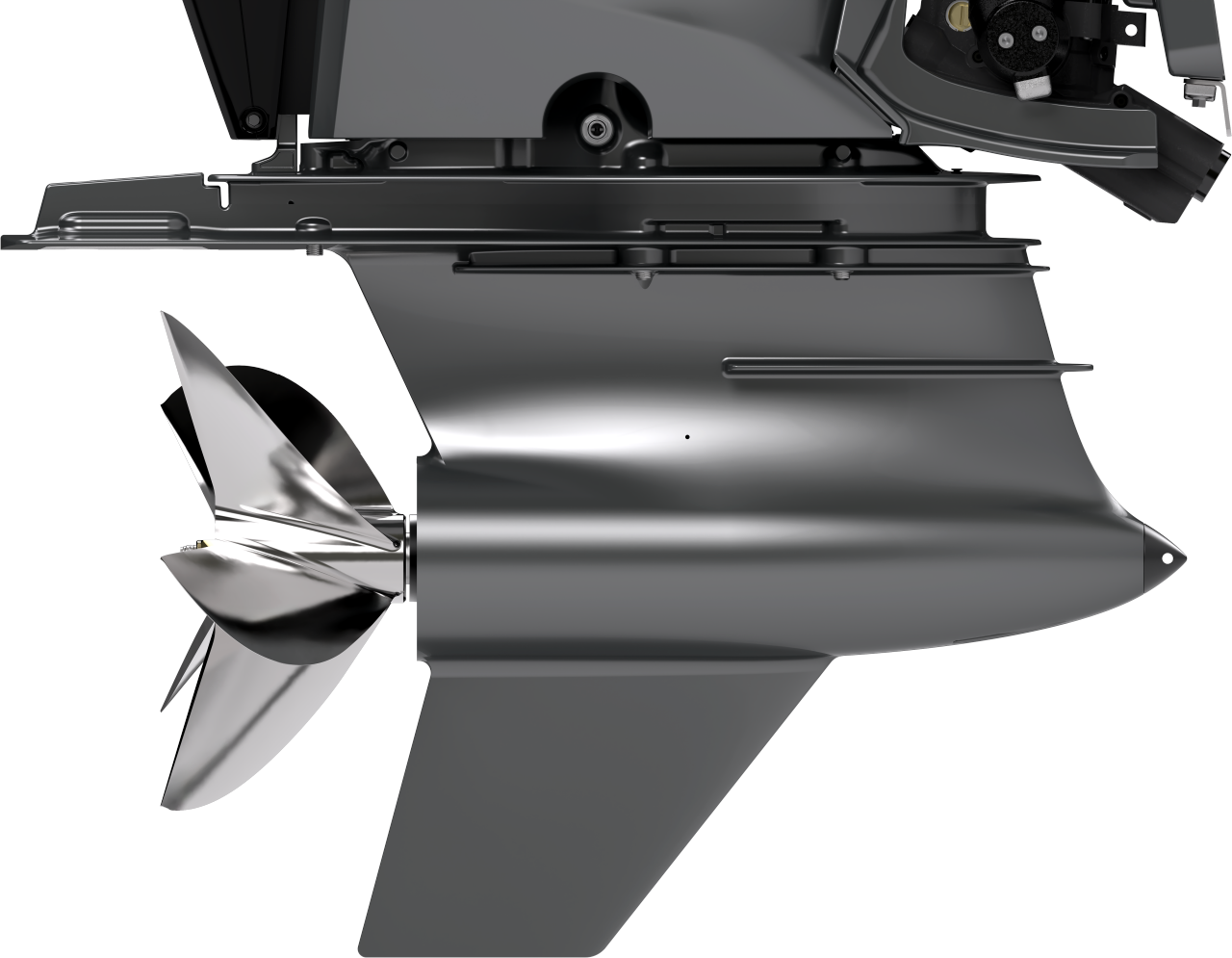

MERCURY RACING R-DRIVE

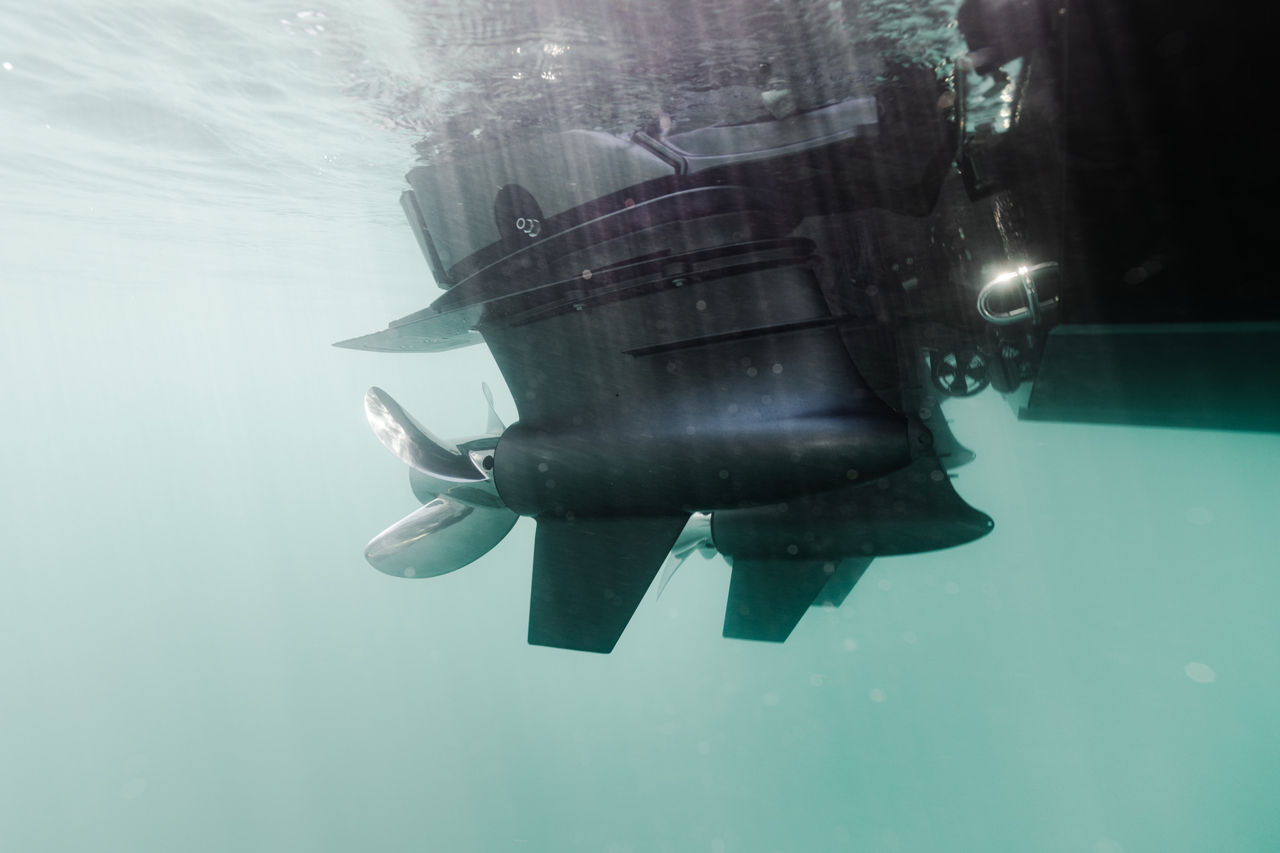

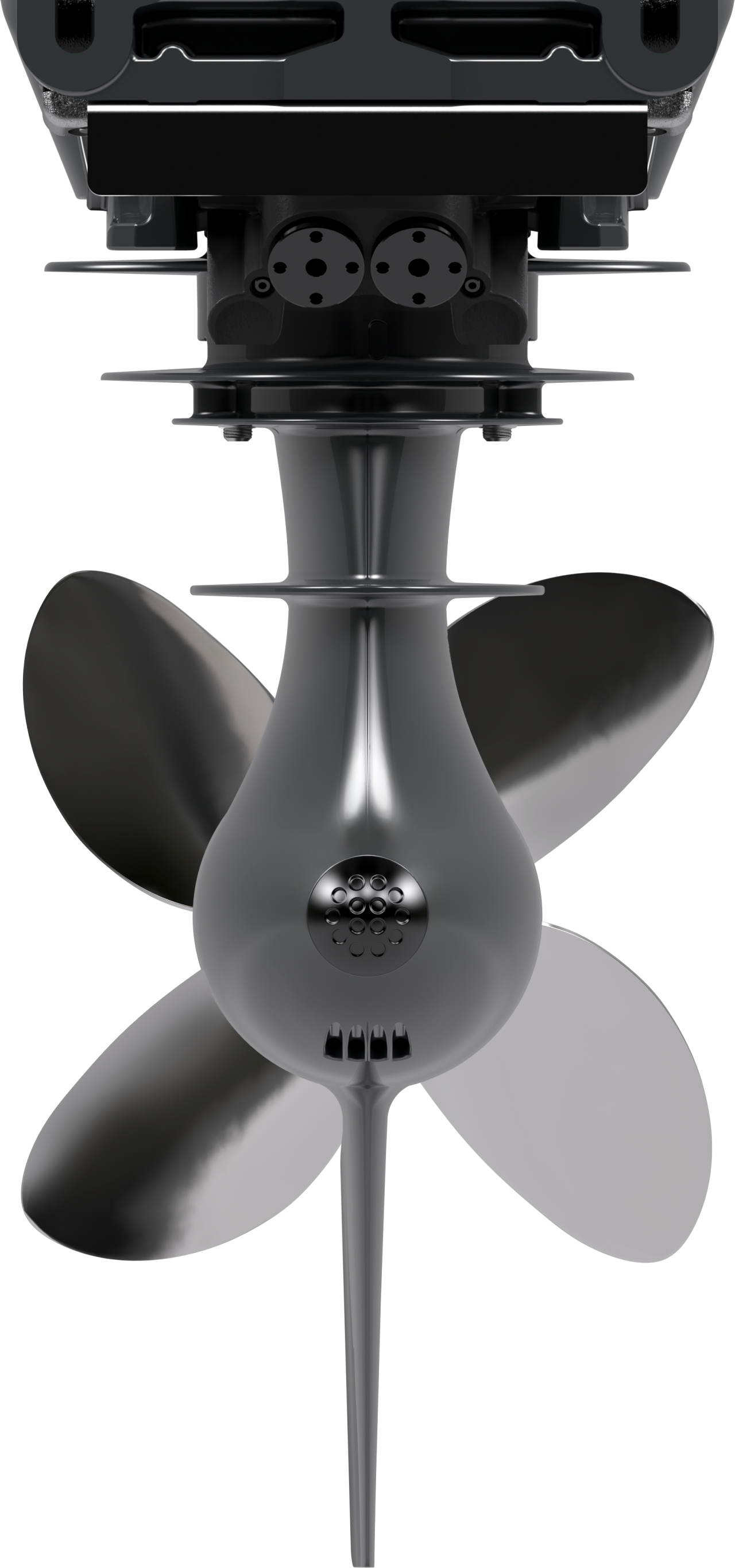

The new level of outboard power demands all-new gear case options. Introducing the exclusive Mercury Racing R-Drive, available in R-Drive and R-Drive Sport versions, this high-performance gear case is designed specifically for the speed and power of the 500R outboard in submerged, semi-surfacing and full surfacing applications.
DESIGNED FOR HIGH SPEED
THE SHAPE OF SPEED
A crescent leading edge and long aspect 5.9-inch torpedi are hydrodynamically tuned for high speeds in any application. Equipped with 1.60:1 gear ration and desined to turn propellers up to 17 inches in diameter.
Reduced drag
A new intermediate spray plate reduces drag in submerged and transition applications.

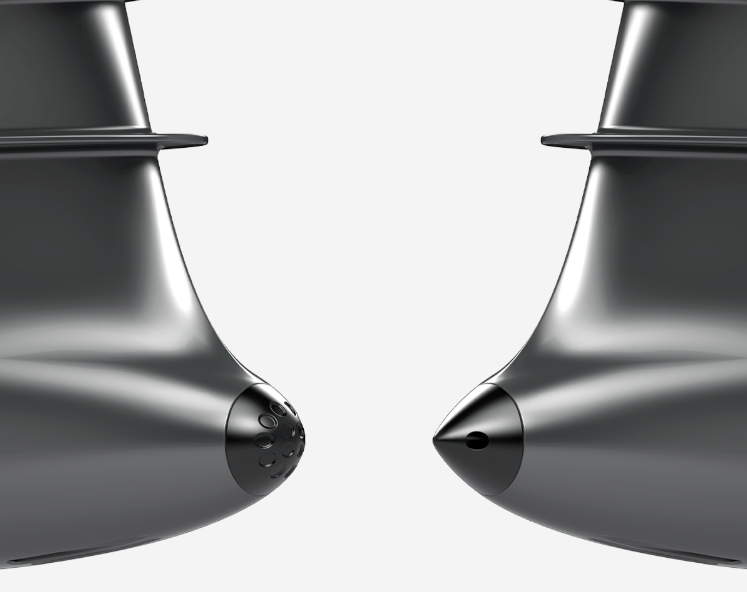

Optimize flow
Low water pickups plus a new ajustable nose cap inlet system optimize water flow for submerged, transition and hight-speed surfacing applications.
Pumped up

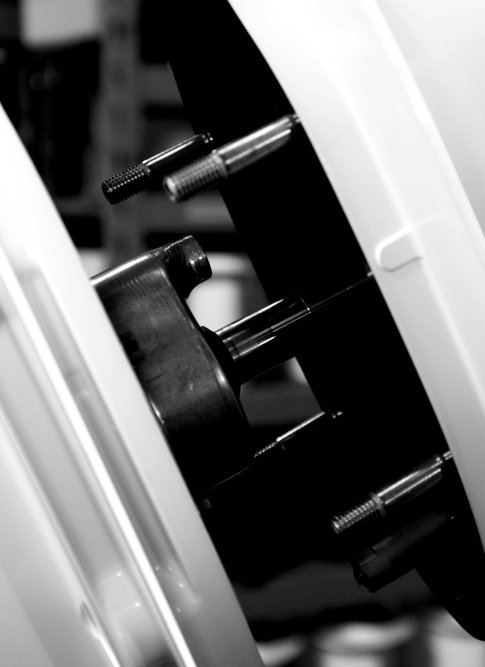

To support a generous flow of colling water to the powerhead water pump capacity is increased by 57 percent.

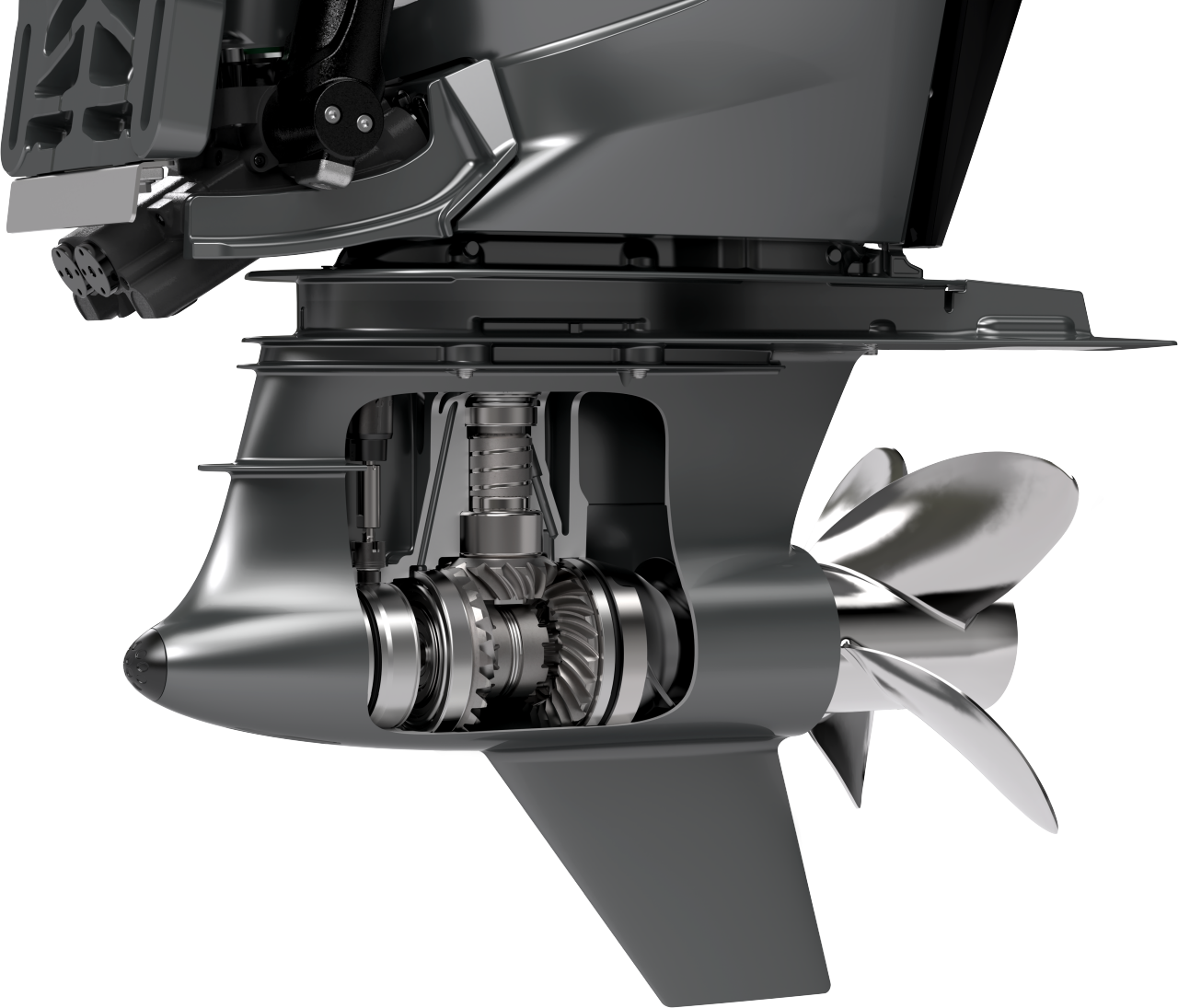

Stronger inside
A rugged new 1-inch diameter driveshaft and 1.5-inch diameter propshaft are designed to handle the torque and thrust of 500 horsepower.
Drives

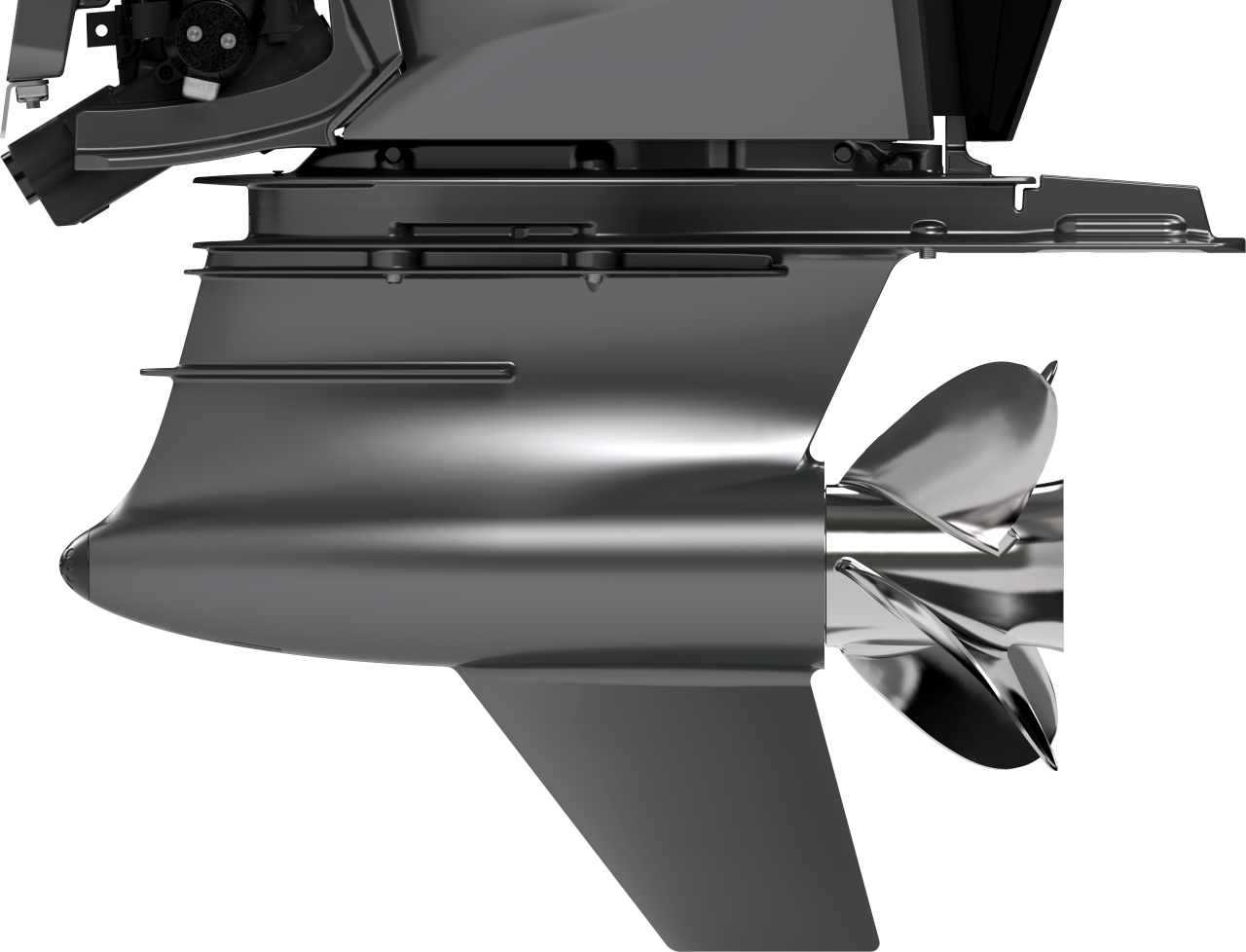

R-Drive
The R-Drive gearcase features a standard skeg length with a very efficient parabolic cross-section shape with left- or right-hand camber to balance steering force with standard and counter rotation props. Designed to perform in submerged and transition applications on boats capable of speeds between 85 and 100mph
R-DRIVE SPORT
The R-Drive Sport is optimized for surfacing applications at speeds beyond 100 mph. Its longer skeg maintains steering control while operating fully surfaced at the high mounting positions desirable for many of the fastest hulls.
TECHNOLOGY
DIGITAL THROTTLE & SHIFT (DTS)
The precision of Digital Throttle and Shift (DTS) with available Mercury Racing Digital Zero Effort controls eliminates cable maintenance and delivers smooth shifting with instant throttle response.
ADAPTIVE SPEED CONTROL
Adaptive Speed Control maintains engine RPM as load changes due to sea conditions or turning maneuvers to maintain boat authority with less control input.
SMARTCRAFT TECHNOLOGIES
The 500R model supports the full suite of Mercury SmartCraft technologies, including the Engine Guardian monitor system. Stream engine and performance data to a Mercury VesselView multi-function display or to many other multi-function displays.

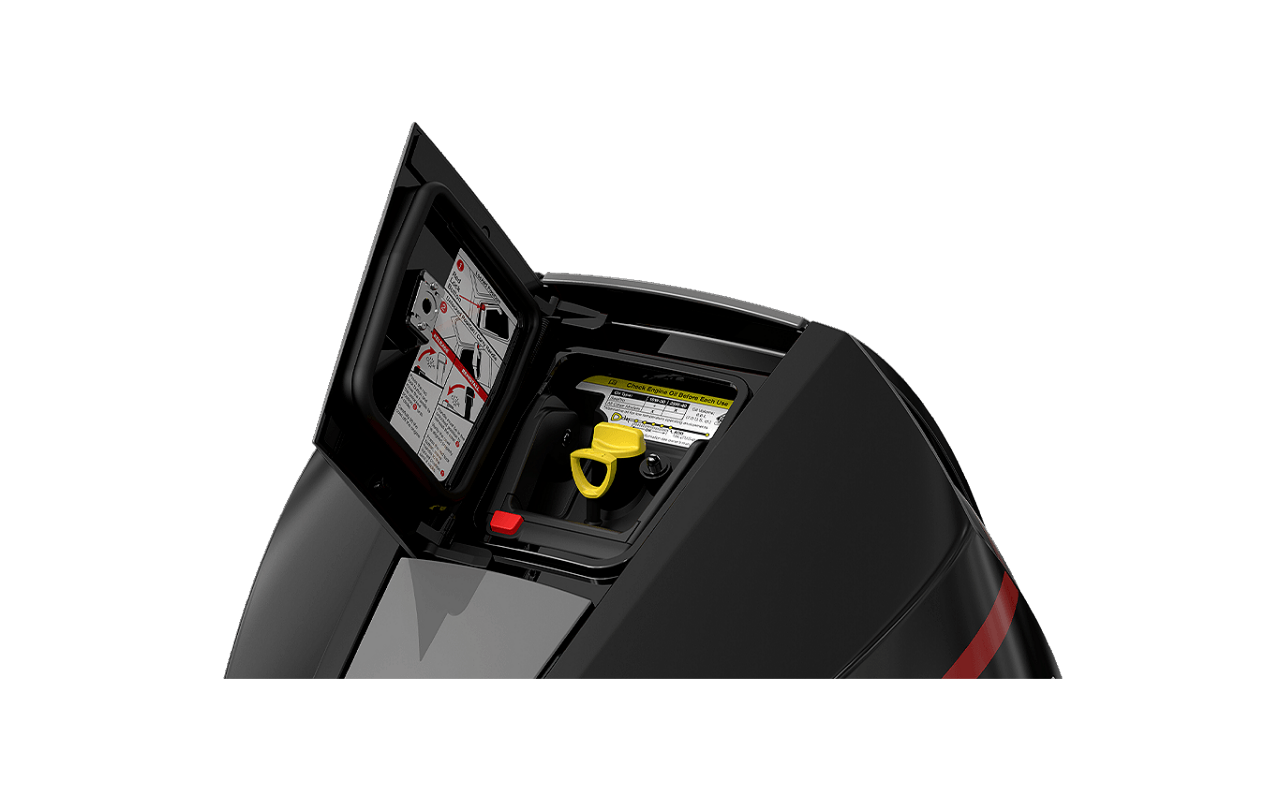

TOP COWL SERVICE DOOR
Pop open the industry-exclusive Top Cowl Service Door for easy access to the oil dipstick and fill without removing the cowl.
Specifications
Product details
500R
Horsepower (HP/KW)
500 / 372
WOT RPM
6000-6600
Engine type
V8 (64 Degree) with 32-Valve Dual Overhead Cam (DOHC)
Displacement (LITER/CID)
4.6 / 281
Induction system
Supercharged with Charge Air Cooling and Electronic Boost Control
Fuel requirements
Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON
Oil requirement
MRX 10W-30 or Mercury 10W-30 Full Synthetic
Charging (AMP/WATT)
115 / 1449
Steering
Hydraulic or JPO Electric
Throttle & shift
Digital Throttle & Shift (DTS)
Midsection
Advanced Racing Core (ARC)
Integrated rear tie bar bracket
Available
Shaft lengths (INCH)
20 / 25 / 30 / 35
Gearcase
R-Drive / R-Drive Sport
Gearcase ratio
1.60:1
Dry weight (LB/KG)
726lbs
