Specifications

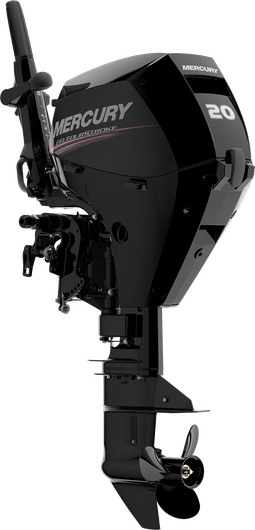

FourStroke: 15-20 hp

 20 hp
HP / kW
  • 20 / 14.7
Engine type
  • Inline 2
Displacement (CID/CC)
  • 21.4 / 351
Full throttle RPM
  • 5400-6100
Fuel induction system
  • 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt
  • 12 amp / 138 watt
Recommended fuel
  • 87% octane / up to 10% ethanol
Recommended oil
  • Mercury FourStroke Oil 10W-30
Engine protection operator warning system
  • Low oil pressure
  • Over-rev
Starting
  • Electric
  • Manual
Steering
  • Remote
  • Tiller
Shaft length
  • 15" / 381 mm
  • 20" / 508 mm
Gearcase ratio
  • 2.15:1
Dry weight *Lightest model available
  • 115 lbs / 52 kg
CARB star rating
  • 3
Bore and stroke
  • 2.40 x 2.36" / 61 x 60 mm
Ignition
  • CDI w/electronic spark advance
Fuel system
  • Carbureted
Cooling system
  • Water-cooled with thermostat
Gear shift
  • F-N-R
Gearcase options
  • Standard
Trim system
  • Power Tilt
Trim positions
  • 6
Exhaust system
  • Through prop
Shallow water drive
  • Yes
Shallow water trim range (degrees)
  • 16
Remote fuel tank standard (gal / L)
  • 6.6 / 25
Color
  • Phantom Black
